Synthetic Wood

FENCE EFC-01

MEASUREMENT
MATCHING FENCE GATE
COMPONENTS

① Top Fence Board

CFB-02(140×20mm)

② Fence Board

CFB-01(150×20mm)

③Steel Base

Φ75mm

③ Steel Tube

Φ75mm

④ Aluminum Fence Base

CH-03(20×26mm)

⑤ Sealing Edge

CH-04(26.2×20mm)

⑥ Post Cap

140×140mm

⑦ Post

CFP-01(140×140mm)

INSTALLING WITH STEEL BASE
1.Fix Steel Bases

Determine the position of the fence posts, anchor the steel bases to the ground with SS expansion bolts.

Note: Keep the fence posts in a straight line.

2. Set Posts

Slide posts over the steel bases.

INSTALLING WITH PRE-BUILT STEELTUBE
1. Dig Holes

Dig 300*300 mm holes on the ground. The minimum hole depth should be 600 mm or be in accordance with local building codes. The spacing between posts on-center should be 1800 mm

2. Set Steel Tubes

Place steel tubes into the holes. Pour in concrete and wait for it to set. Make sure the posts are plumb and in a straight line.

3. Set Posts

Slide posts over the steel tubes.

4. Slide in Plastic Clips

Slide plastic clips (TS-F) into the post slots. Make sure the clips at the bottom of the two posts are flush with each other and in the correct position by using a level. Fix the plastic clips to the posts with self-drilling screws

FENCE INSTALLATION
1. Fix the Aluminum Fence Base

Slide in the aluminum fence base and place it on the bottom.

2. Slide in Fence Boards

Slide in fence boards one by one.

3. Place Top Board in Position

Place the Top Fence Board on top

4. Reserve a Gap

Keep an overall gap of 5 mm between the board ends and the post slots.

5. Slot in Sealing Strips

Slot the sealing strips into the posts.

6. Put on Post Caps

Put post caps on the posts

7. Installation Finished

Continue and finish the installation in the same manner.

2. Slide in Fence Boards

FENCE EFC-02

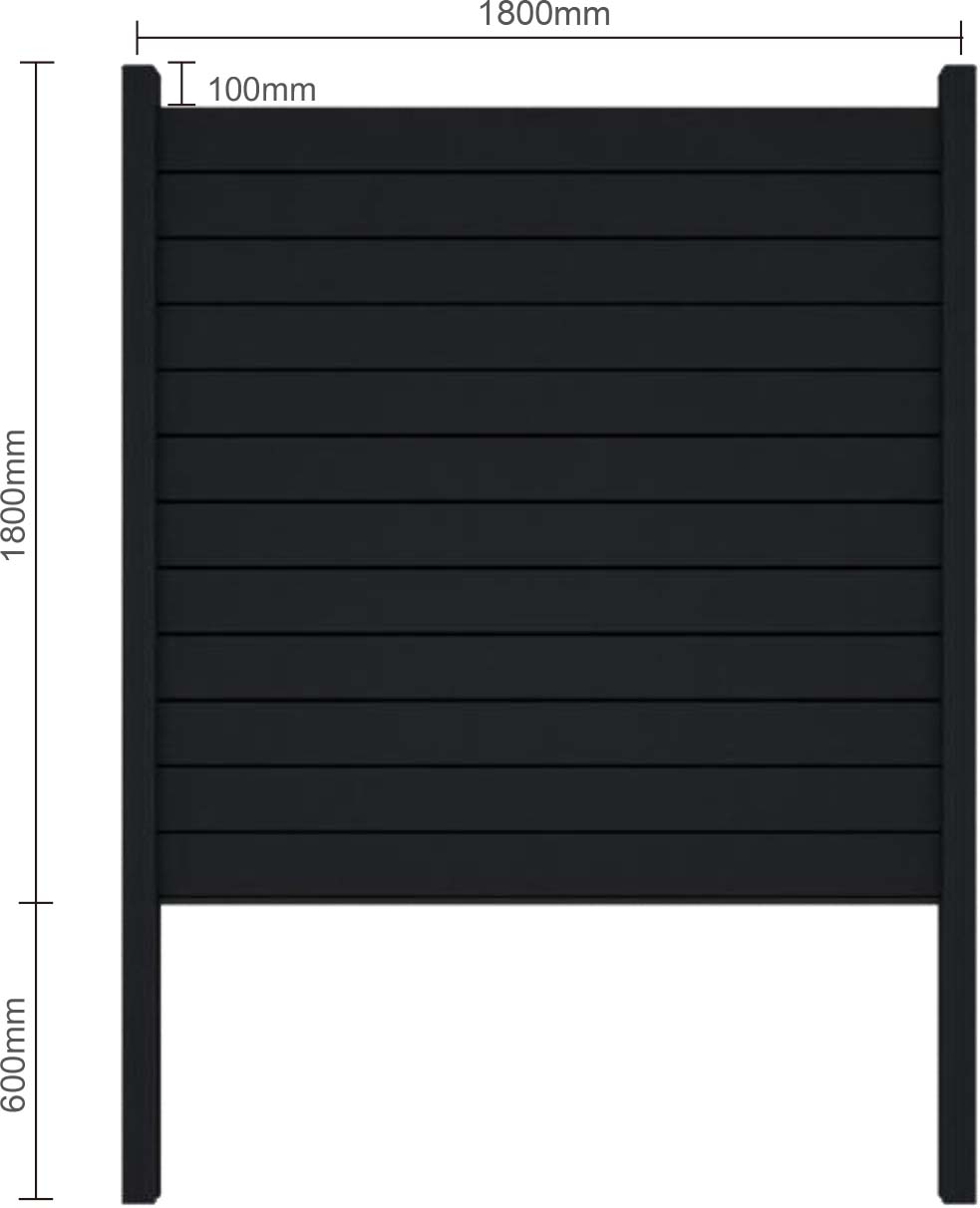

MEASUREMENT

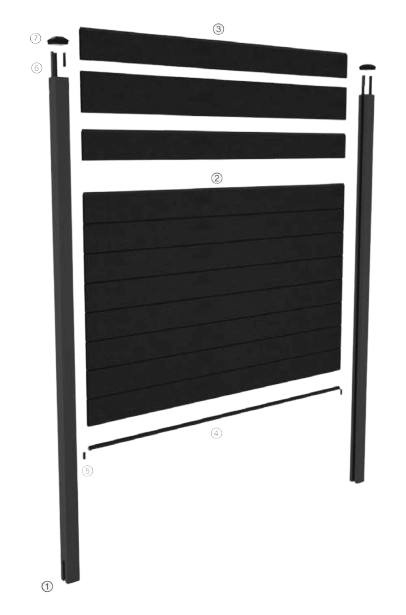

COMPONENTS

① Aluminum-Post

TA-01(70×70x2400mm)

② Fence Board

CFB-01(150×20mm)

③ Top Fence Board

CFB-02(140×20mm)

④AluminumFenceBase

CH-03(20×26mm)

⑤ Clip

TS-F(20×14mm)

⑥ Sealing Edge

CH-05(24×6.5mm)

⑦ Post Cap

PC-70(70×70mm)

INSTALLATION STEPS
1. Dig Holes

Dig 300*300 mm holes on the ground. The minimum hole depth should be 600 mm or be in accordance with local building codes. The spacing between posts on-center should be 1800 mm

2.Set Posts

Place posts into the holes. Pour in concrete and wait for it to set. Make sure the posts are plumb and in a straight line.

3. Slide in Plastic Clips

Slide plastic clips (TS-F) into the post slots.

4. Slide in Plastic Clips

Make sure the clips at the bottom of the two posts are flush with each other and in the correct position by using a level. Fix the plastic clips to the posts with self-drilling screws.

5. Slide in Fence Boards

Place into position the aluminum fence base and fence boards one by one

6. Fix the Top Board

Place the top fence board in position.

7. Slide in Sealing Edges

Slide in sealing edges

8. Installation Finished

Put on post caps. Installation finished

FENCE EF-01/EF-02

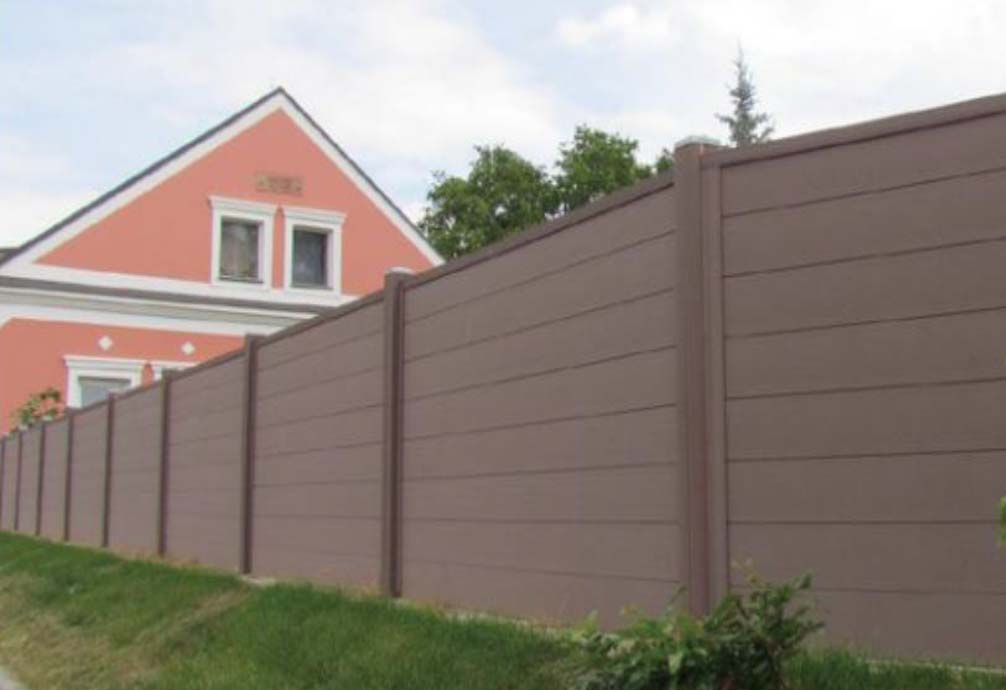

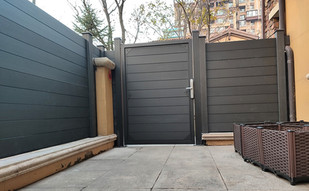

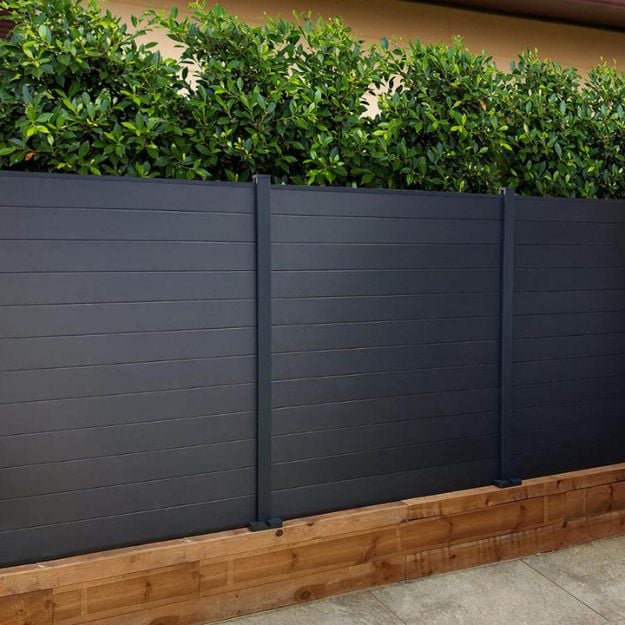

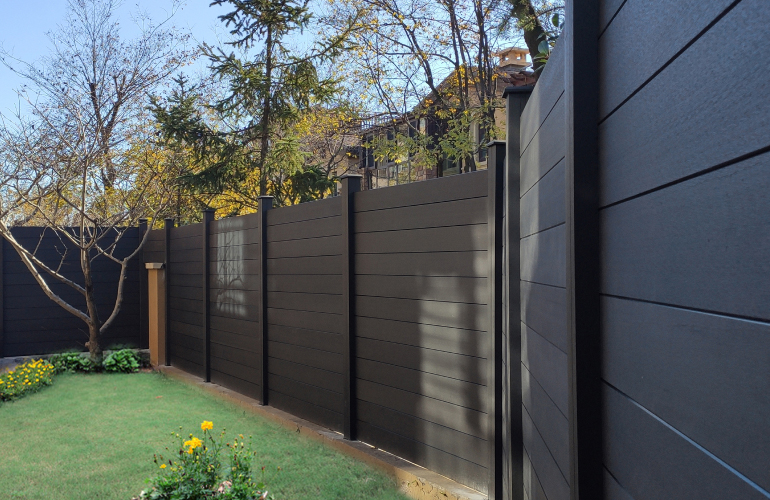

PROJECTCASES
COLORS AVAILABLE

Red Pine

Coffee

Blue Gray

FENCE EFD-01

COMPONENTS

EFD-01

For Fence EF-01

① Fence Gate

EFD-01(1665×900mm)

① Fence Gate

EFD-01(1665×900mm)

① Fence Gate

EFD-01(1665×900mm)

① Fence Gate

EFD-01(1665×900mm)

① Fence Gate

EFD-01(1665×900mm)

① Fence Gate

EFD-01(1665×900mm)

① Fence Gate

EFD-01(1665×900mm)

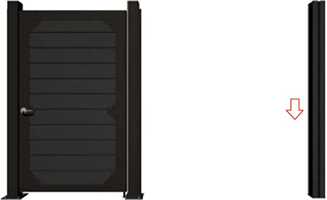

Fence Gate EFD-01 Installation
1. Set Posts

Prior to installation, make sure the ground is solid and smooth. Determine the swing direction of the fence gate. Anchor the fence gate posts to the ground with expansion bolts

Note: Keep a distance of 900 mm between the sides of the posts and make sure they’re plumb and in a straight line.

2. nstall Bearing Pedestal and Bearing

Put the bearing pedestal and bearing on the shaft.

3. Fix Shim to Gate

Fix the shim with screws over the hole on the bottom of the gate, make sure the shim is well centered. Mount the gate onto the shaft.

4. Drill and Tap Holes

Use the gate to determine the position of the upper L-hinge, then drill and tap the holes for the L-hinge.

5. Fix L-Hinge to Post

Fix the L-hinge to the post with machine screws, and tighten the nuts from inside the post.

6. Gate Placement

Secure the L-hinge to the gate with a hexagon socket bolt.

7. Gate Placement Finished

Gate placement completed

8. Fix Strike PLate and Latch Protector

Fix the strike plate and latch protector to the post with self-drilling screws, and make sure it’s in the correct position so that the lock functions well.

9. Set Posts

Prior to installation, make sure the ground is solid and smooth. Determine the swing direction of the fence gate. Anchor the fence gate posts to the ground with expansion bolts

Note: Keep a distance of 900 mm between the sides of the posts and make sure they’re plumb and in a straight line.

10. nstall Bearing Pedestal and Bearing

Put the bearing pedestal and bearing on the shaft.

3. Fix Shim to Gate

Fix the shim with screws over the hole on the bottom of the gate, make sure the shim is well centered. Mount the gate onto the shaft.

11. Drill and Tap Holes

Use the gate to determine the position of the upper L-hinge, then drill and tap the holes for the L-hinge.

12. Fix L-Hinge to Post

Fix the L-hinge to the post with machine screws, and tighten the nuts from inside the post.

13. Gate Placement

Secure the L-hinge to the gate with a hexagon socket bolt.

14. Gate Placement Finished

Gate placement completed

15. Fix Strike PLate and Latch Protector

Fix the strike plate and latch protector to the post with self-drilling screws, and make sure it’s in the correct position so that the lock functions well.

FENCE EFD-02

MEASUREMENT

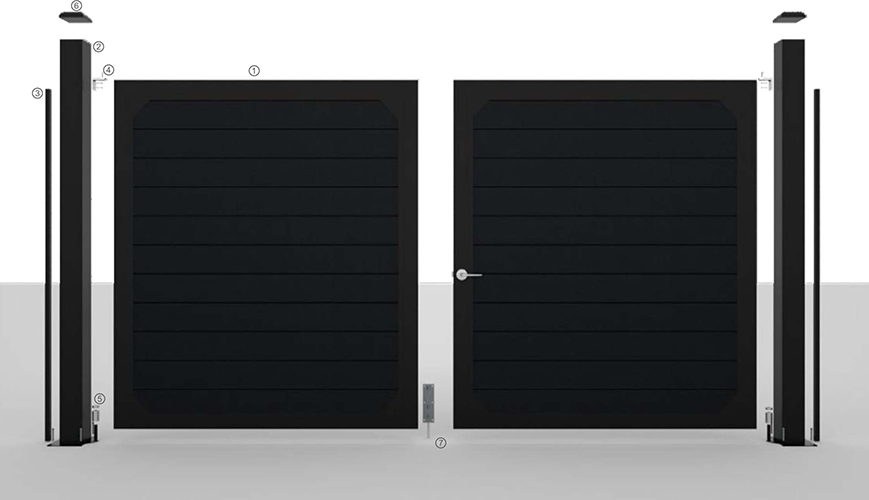

COMPONENTS

① Fence Gate

pEFD-02(3000×1700mm)

② Steel Post

TF-03S(h2000*100*100mm()1700×20x20mm)

③ U-Shaped Slot

④ L-Hinge

⑦ Latch

⑥ Post Cap

AL-100(100×100mm)

⑤ Bearing

Fence Gate EFD-02 Installation

1. Set Posts

Before installation, make sure the ground is smooth and solid. Determine the swing direction of the gate. Anchor fence gate posts to the ground with expansion bolts

Note: Keep a distance of 3000 mm between two posts and make sure they’re in a straight line

2. Install Bearing Pedestal and Bearing

Put the bearing pedestal and bearing on the shaft.

3.Fix Shim to Gate

Fix the shim with screws over the hole on the bottom of the gate, make sure the shim is well centered.

4. Drill and Tap Holes

Mount the gate to the post and then drill and tap the holes for the L-hinge.

5. Fix L-Hinge to Post

Fix the L-hinge to the post with machine screws, and tighten the nuts from inside the post.

6. Gate Placement

Secure the gate in palce with a machine screw going through the L-hinge.

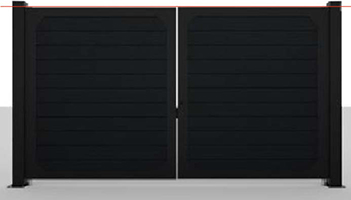

7. Gate Placement Finished

Make sure the left and right sides are aligned and the gaps are uniform. You can make adjustments by adding or reducing shims.

8. Install the lock

Fix the lock to the gate, and make sure it’s in the correct position so that the lock functions well.

9. Fix Latch

With respect to the ground clearance, at the bottom of the gate, secure the latch vertically in position with self-drilling screws. Drill a hole 5 mm in depth and 16 mm in diameter on the ground to accommodate the latch bolt when locking the gate.

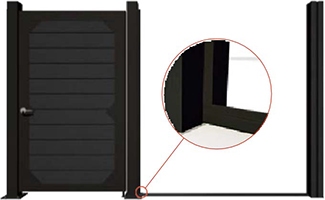

10. Fix U-Slots to Fence Gate Post

Place U-slots on the side of the fence gate post where fence boards are installed, make sure they’re centered, then fix with screws at an interval of 30 cm.

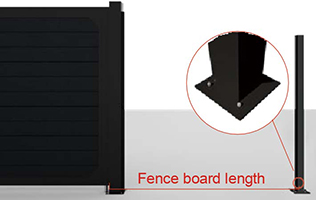

11. Set Posts

Put the post on the steel base.

12. Fix the Aluminum Fence Base

Slide in the aluminum fence base and place it on the bottom.

13. Install Fence Boards

Push in the fence boards one by one along the slots of the posts, and the Top Fence Board should be last.

14. Insert Sealing Strips

Fence installation completed,Insert sealing strips into the posts

15. Put on Post Caps

Put the post cap on the top of the post

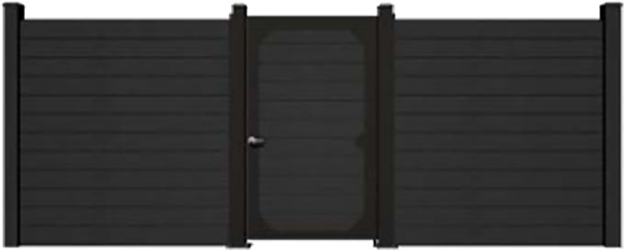

16. Installation Finished

Continue installing the rest fence boards and finish the installation.
