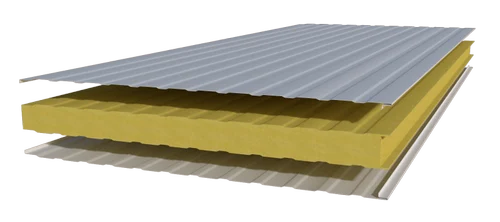

Sandwich Panels

Sandwich Panel(Fire Rated)

SafeDefence Protection Systems

Our Safe Defense Protection Systems consist of a high performance synthetic polymer technology designed to protect people, equipment and assets from impact

  • KPS Post for the protection of walls, doors and corners.
  • KPS Trim to protect the base of corners and columns.
  • KPSRail for the protection of people in areas of forklift and other mobile machinery.
  • KPSBarrier-S, KPSBarrier-D and KPSBarrier-H to protect walls, columns and other objects at varying heights.
  • KPSGoalpost for door perimeter protection.

SafeDefence Protection Systems have been subjected to robust independent impact testing to determine the force they can withstand and their respective deflection. Test results indicate that the protection system’s elastic / flexible design outperforms many comparable systems.

Protection systems are manufactured from either solid high performance synthetic polymer technology or our latest high performance flexible protection technology, FLEXsafe. All products are located and installed independent of the elements to be protected, removing the risk of damage from impact transmission.

Hygienic and easy to clean, low maintenance and carrying food-quality certification, these high performance synthetic polymer protection systems typically contain 40% recycled material and have been designed to suit all industries.

Panel Properties

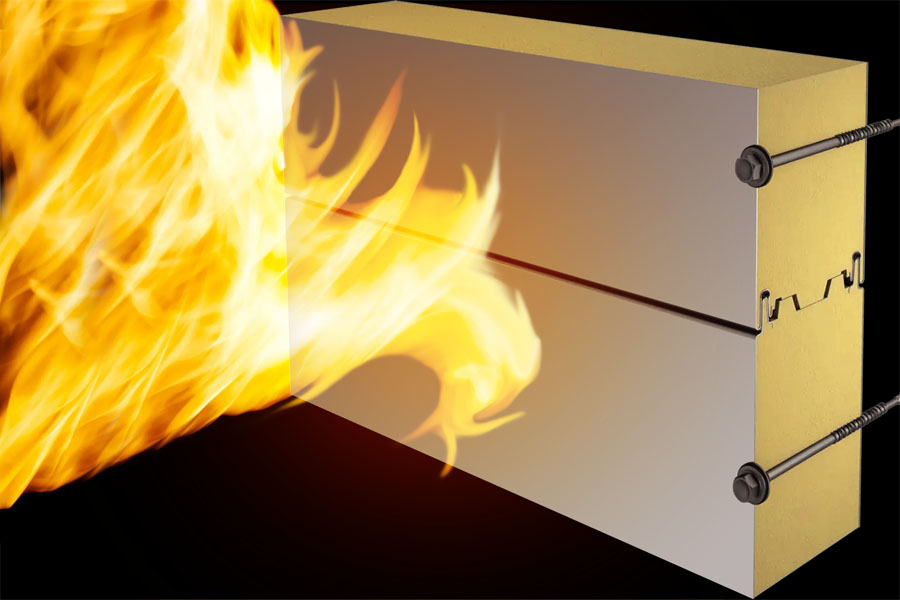

FIRE SAFETY

Paroc Panel System insulated panels are a reliable choice wherever fireproof materials are required to protect life and property.

Global fire safty protects the lives of people in the buildings as well as fire fighters,prevents losses in terms of damaged buildings, facilities and moveable property as well as interruptionof business activities, and protects the environment from hazardous emissions Sandwich panels, are classified in EuraclassA2-s1, d0 and structural stone wool core in Euroclass A1. They meet the requirements for fire resistance up to four hours in walls and up to one hour in ceilings. Paroc Panel System provides a range of approved detail solutions to guarantee the function of panel structures.

The declared fire resistance classes are given in our Declaration of Performance for the CE-making. There are different DoPs for the different panel types. For the following panel types we have no Fire Resistance classifications (NPD = No Performance Determined):

-Acoustic(when perforation is on the non exposed side) In planning and construction it is important to take into account the load bearing section to which the panels are fixed meet the fire resistance requirement needed. After delamination of the fire exposed facing the dewad load of the panels is carried by the support sturcture.

Fire installation details are given by request or on Paroc Panel System websites.

Paroc panel system is not responsible in specific projects, requirements and classification must always be controlled by responsible body.

EI classification is the most commom classification of sandwich panels, Paroc Panel System have also a solution for M-classification(EI120-M), called Impact Panels. Please contact Paroc Panel System for information.
